HDL buspro / HDL KNX / Touch interfaces

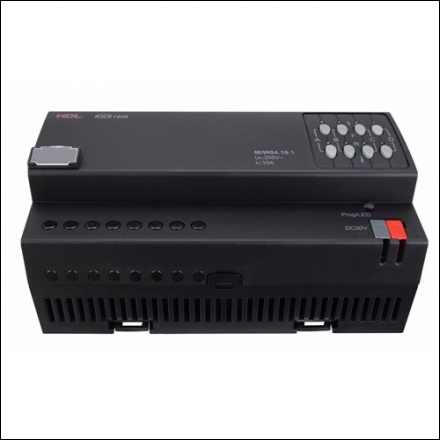

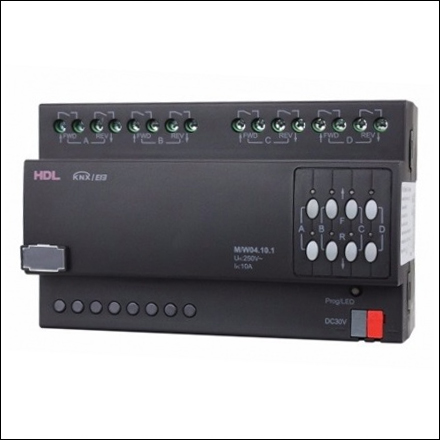

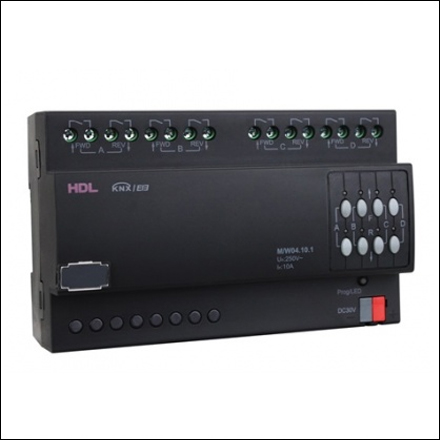

4CH 10A Curtain Actuator

Product code: HDL-M/W04.10.1
HDL/KNX-EIB Curtain controller is fully abide by the European safety standards for the internal use of 10A High-current magnetic. This line offers options such as power-free functionality and high dependency.
Working Voltage : 21~30VDC Class2
Communication : KNX/EIB
Dynamic current : <12mA
Static current : < 5mA
Relay output current : 10A
Rated switching voltage : 250V AC Supply
Channel electrical life : >1000000
Mechanical life : >1000000
Dimensions : H 90mm x W144mm x D 66mm
Net weight : 362.4g
