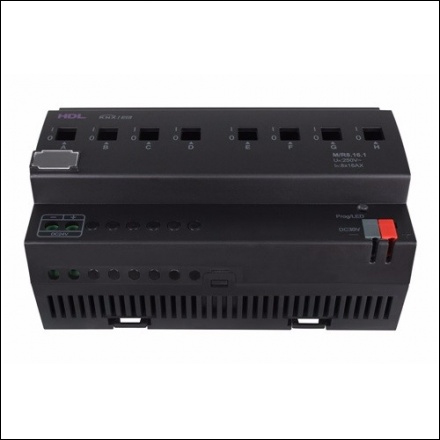

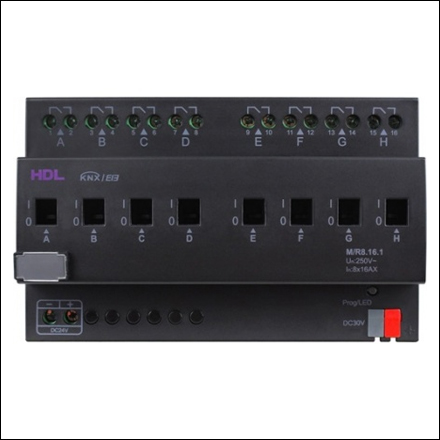

8CH 16A High Power Switch Actuator

Product code: HDL-M/R8.16.1
HDL/KNX-EIB Bus relay series products are fully compliant with European safety standards and protocols for High-power switching KNX equipment, internal use of 50A High-current magnetic relay, zero power consumption and long life are some of the key features.
Working Voltage : 21~30VDC Class 2
Communication : KNX/EIB
DC current : 15mA
Rated switch voltage : 250V AC/440VAC Supply
Rated switch current : 16A lighting load, Max inrush 500A
Output Current : 8CH/16A
Dimensions : H90mm x W144mm x D 66mm
Net weight : 577g
