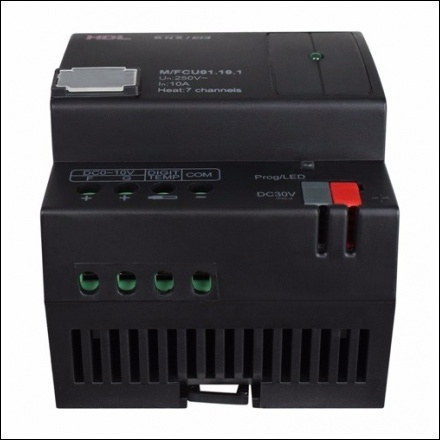

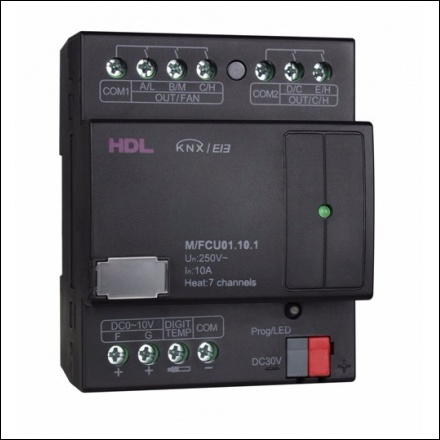

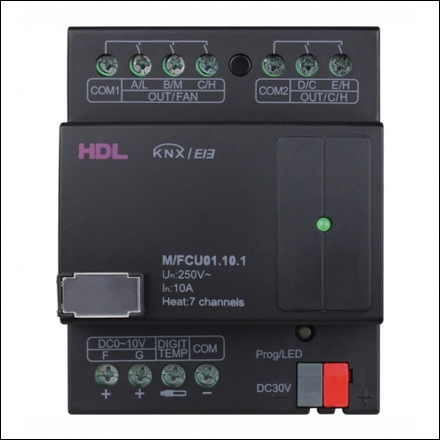

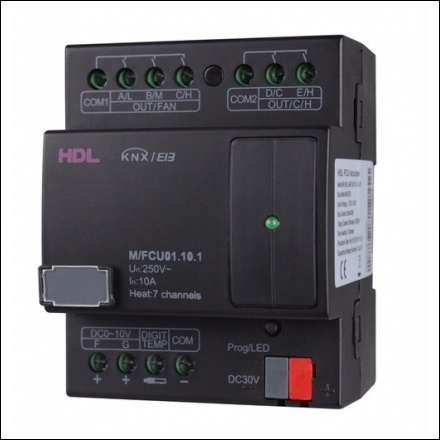

FCHC Actuator

Product code: HDL-M/FCHC.4.1
The HDL-M/FCHC.4.1 is FCHC Actuator, it is used for control air condition, fan, compressor, and floor heating, It can be work in conjunction with different panel. The channels function is set via ETS software. It supports up to 7 digital temperature sensors.
Bus Voltage : 21~30VDC
Communication : KNX/EIB
Bus current : <20mA
Temperature sensor : two wires digital temperature sensor TS/C 1.0 (18B20)
Outputs : 8A (AC) 5A (DC)
Dimensions : H90mm x W72mm x D66mm
Weight : 168g
