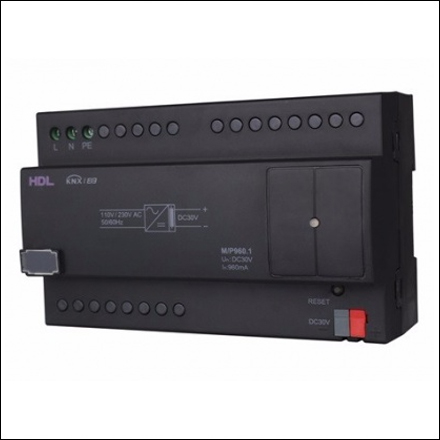

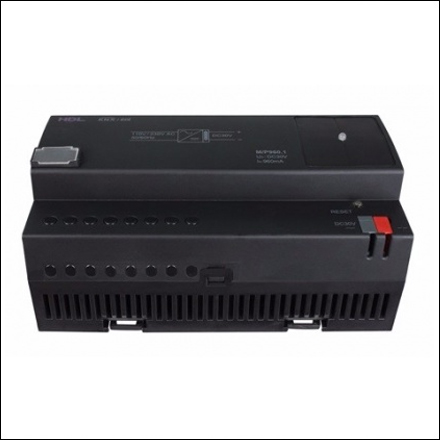

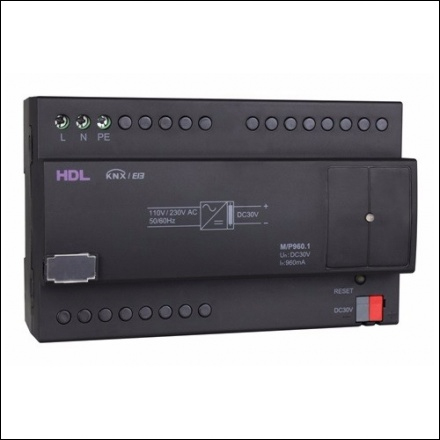

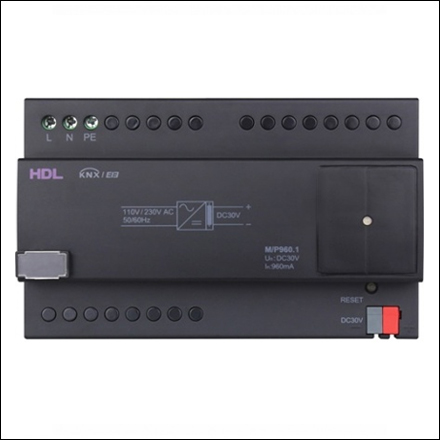

960mA Power Supply Module

Product code: HDL-M/P960.1
HDL/KNX-EIB 960mA power supply module is fully compliance with European safety standards and KNX standard protocol, can output maximum 960nA current to KNX/EIB Bus.
Working Voltage : AC 110V/AC230V 50/60Hz
Bus Communication : KNX/EIB
KNX/EIB voltage output : DC 30V
Supply current : 960mA
Power loss : < 4W
KNX terminals (Red /Grey) 0.6 – 0.8mm Diameter Single Core cable
Dimensions : H 90 x W 144 x D 66(mm)
Net weight : 389.6g
