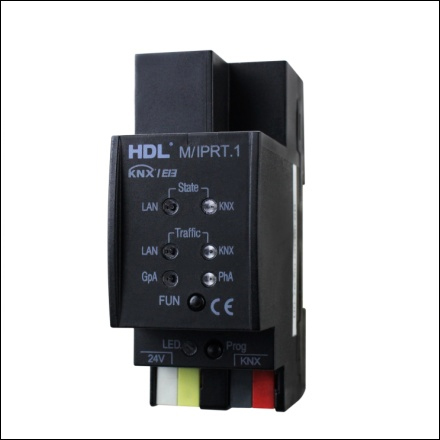

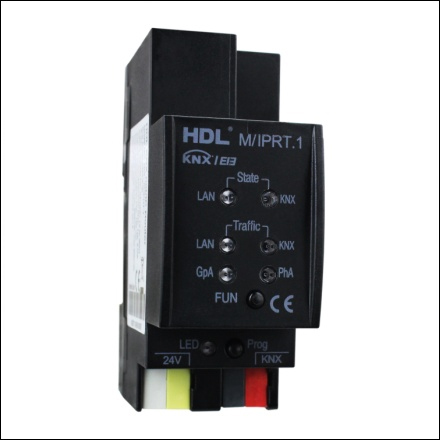

KNX IP Rounter

Product code: HDL-M/IPRT.1
The KNX net/IP Router connects the two communication media Ethernet and KNX.
KNX Bus voltage : DC21-30V
KNX Bus current : 5mA
External power supply : DC 24V (DC 12 to 30V)
Power consumption : typ. 520mW, max. 800mW
External current : typ. 190mA
Dimensions : 90×36(2SU)×70(mm)
Net weight : 66(g)
