HDL buspro / HDL KNX / Touch interfaces

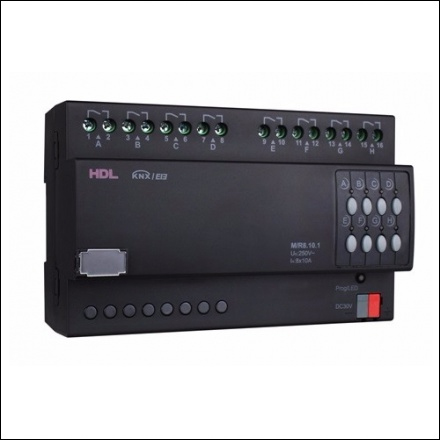

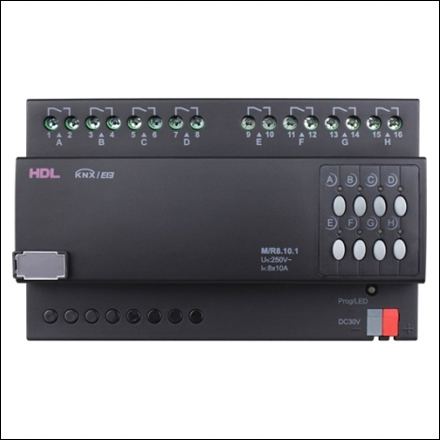

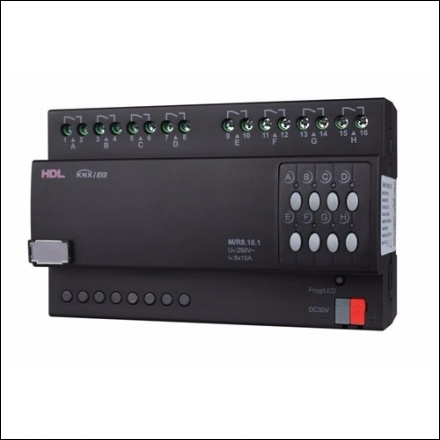

8CH 10A High Power Switch Actuator

Product code: HDL-M/R8.10.1
HDL/KNX-EIB BUS relay series products are fully compliant with European safety standards and protocols for High-power switching KNX equipment, internal use of 10A High-current magnetic relay, zero power consumption and long life are some of the key features.
Working Voltage : 21~30VDC Class 2
Communication : KNX/EIB
Dynamic current : <15mA
Rated switch voltage : 250V AC Supply
Rated switch current : 10A lighting load, Max inrush 500A
Output Current : 8CH/10A
Dimensions : H90mmx W144mm x D 66mm
Net weight : 576g
