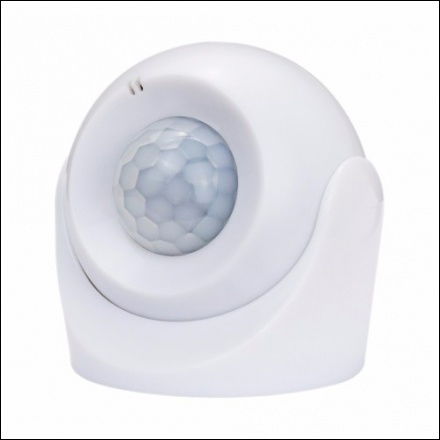

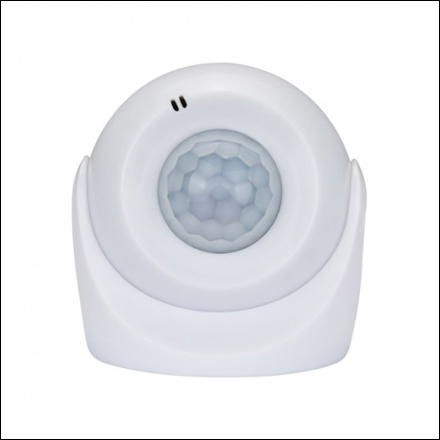

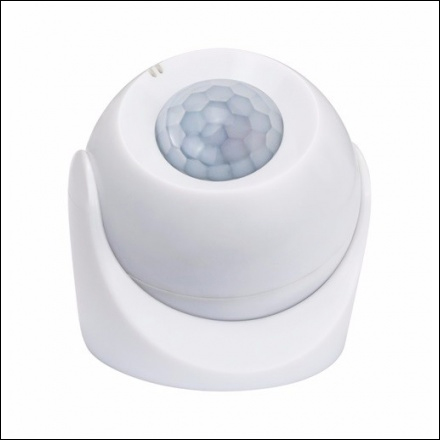

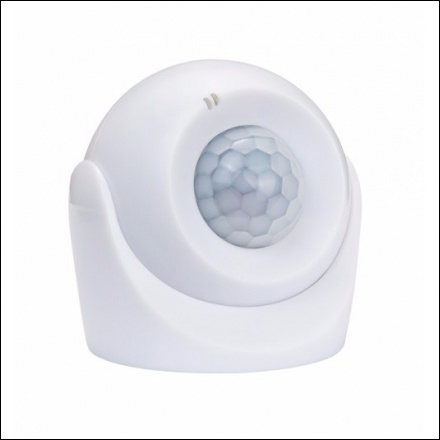

Wireless PIR & Lux Sensor

Product code: HDL-MSPU05-RF.1C
HDL-MSPU05-RF.1C Wireless Ultrasonic & PIR sensor, it includes LUX sensor, UV switch. It can satisfy different requirements according to different logics.
Working voltage : 85-265VAC
Current : 4.2mA/220VAC
Relay output : 5A
Brightness detection range : 0~300LUX
PIR detection range (Radius) : 3.5m (Installation height:2.4m)
Ultrasonic detection range (Radius) : 3m (Installation height;2.4m)
Wireless transmission power : +10dbm
Wireless sensitivity : -90dbm
Indoor communication distance : <=30m
RSSI Received Signal Strength Indication : >-80dbm
Dimension : Φ95×38mm
Net weight : 280g
