HDL buspro / HDL KNX / Touch interfaces

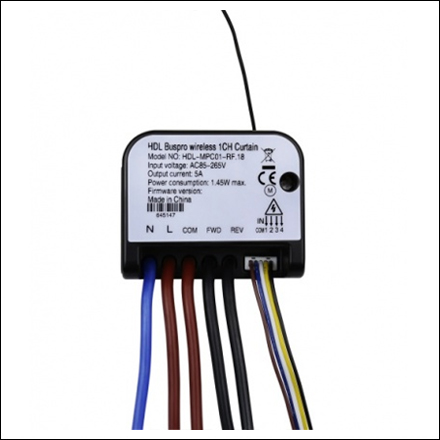

1CH Wireless Curtain Actuator

Product code: HDL-MPC01-RF.18
HDL-MPC01-RF.18 wireless 1CH curtain, has 4CH dry contact, can control the targets by switch. This module should work in conjunction with wireless gateway.
Input voltage : AC85-265V,50/60Hz
Output current : 5A
Power consumption : 1.45W max
Wireless transmission power : +10dbm
Wireless sensitivity : -90dbm
Indoor communication distance : <=30m
RSSI Received Signal Strength Indication : >-80dbm
Dimensions : 44x36x22(mm)
Net weight : 42.1 g
