Products

HDL buspro / HDL KNX / Touch interfaces

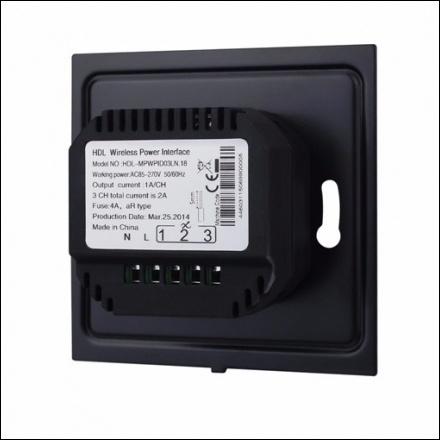

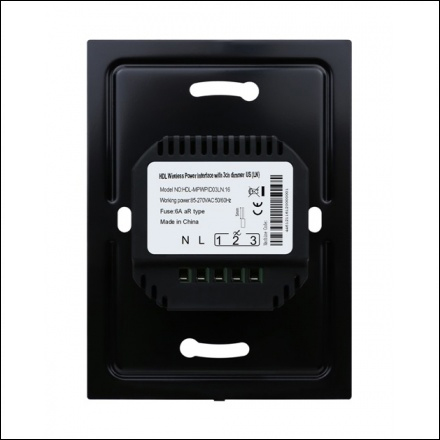

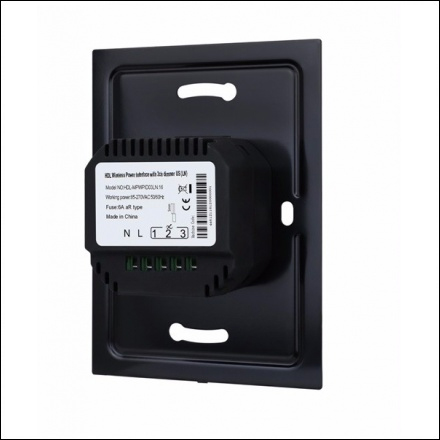

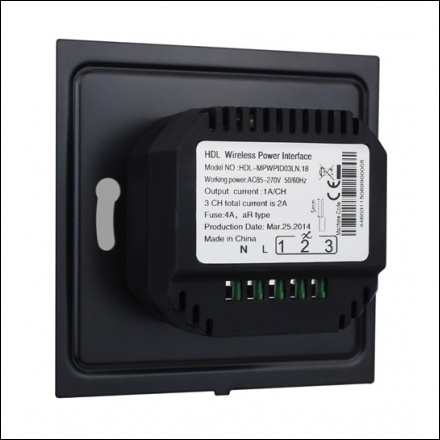

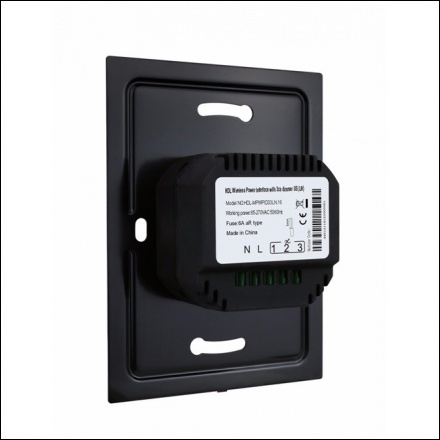

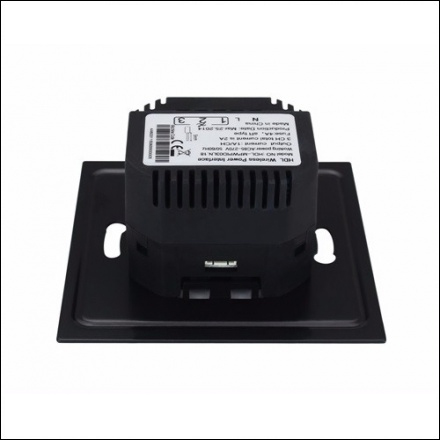

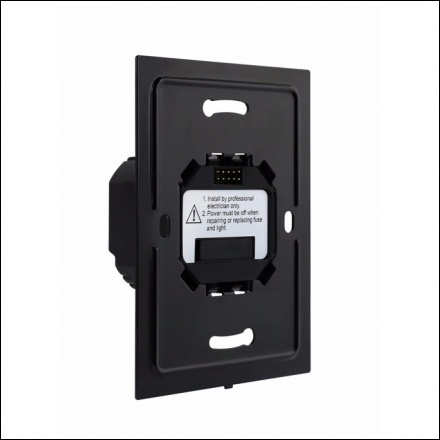

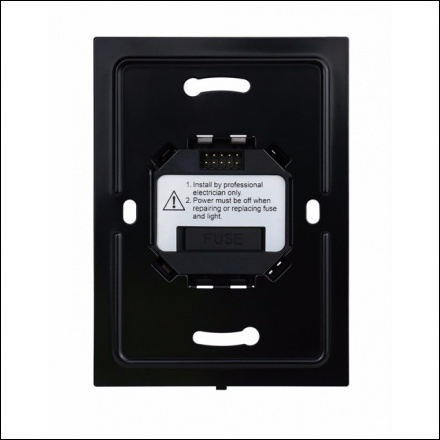

3CH Wireless Dimming PI EU/US (L+N Type)

Product code: HDL-MPWPID03LN.18-A, HDL-MPWPID03LN.16-A
Wireless power interface, which is fire and null wire for dimmer, works with wireless panel, it has the function of dimming and switch.
There are two sizes, EU and US.
Working voltage : AC100-240V 50/60Hz
Output channel : 1channel/3 channels
Output current : 1st channel≤1.2A, 2nd and 3rd channel total current≤2A
Dimensions : 80×80×39(mm), 80×110.5×39(mm)
Weight : 128g, 138g
