HDL buspro / HDL KNX / Touch interfaces

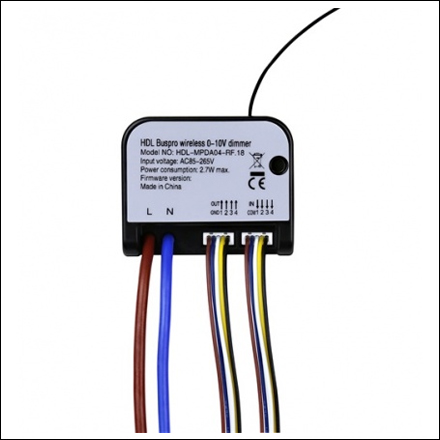

4CH Wireless Ballast Dimming Actuator

Product code: HDL-MPDA04-RF.18
The HDL-MPDA04-RF.18 Buspro Wireless 4CH DC0-10V Dimmer. It has 4CH for 0-10V output, you can adjust the LED value by electronic ballast. And it has 4CH dry contact, can control target by switch. This module should be configured with mesh gateway.
Input voltage : AC85-265V, 50/60Hz
Power consumption : 2.7W max
0-10VDC output for each channel : 0-30mA
Wireless transmission power : +10dbm
Wireless sensitivity : -90dbm
Indoor communication distance : <=30m
Dimensions : 44x36x17(mm)
Net weight : 25.5g
