HDL buspro / HDL KNX / Touch interfaces

iSmart Panel 4 Buttons EU

Product code: HDL-MPE04-RF.18

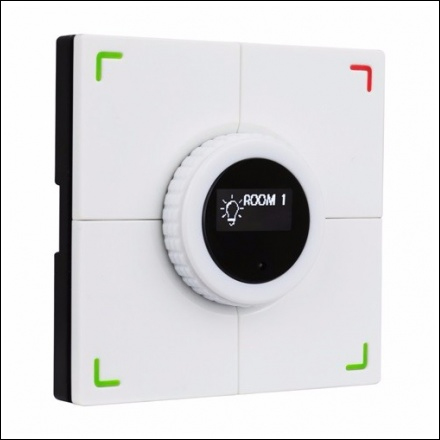

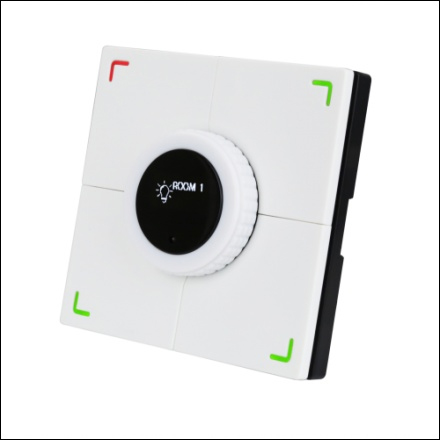

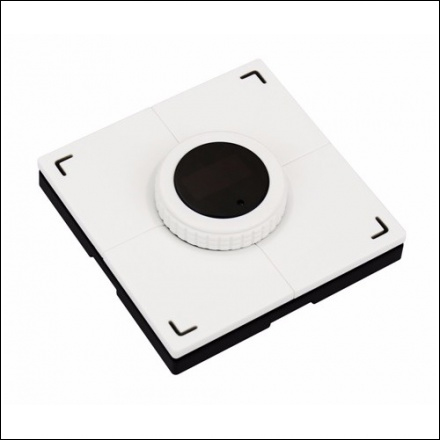

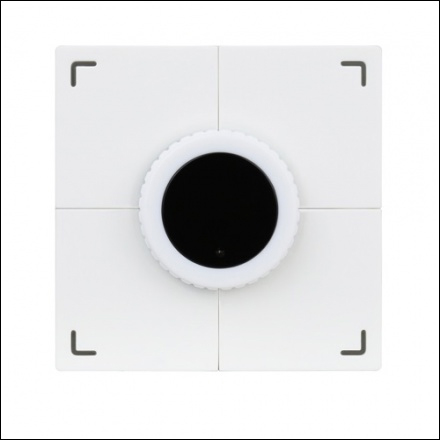

The HDL-MPE04-RF.18 iSmart panel features four simple to use push buttons, and a central rotary dial with intergrated OLED display.
Working voltage : DC5V (from wireless power interface)
Power consumption : 64mA/DC5V
Wireless transmission power : +10dbm
Wireless sensitivity : -90dbm
Indoor communication distance : 20m (barrier free)
RSSI Received Signal Strength Indication : >-80dbm
Dimensions : 55.5mm×55.5mm×16.8mm
Weight : 30.3g
