HDL buspro products

RS232/RS485 Gateway

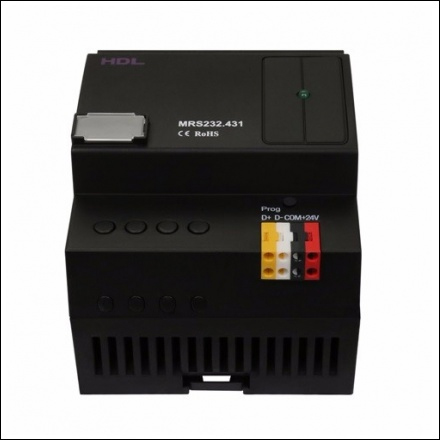

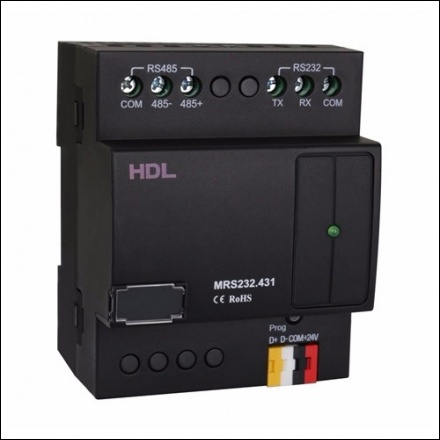

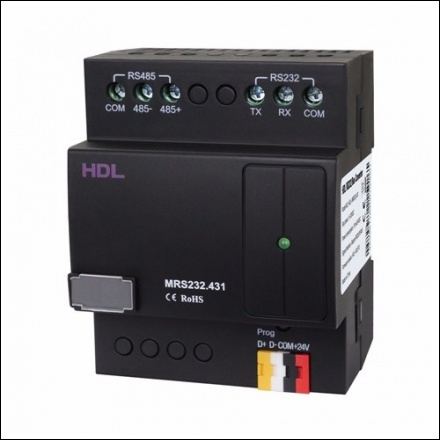

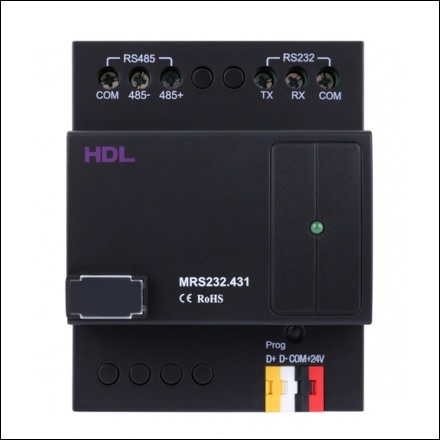

Product code: HDL-MRS232.431
HDL-MRS232.431 has two modes: one is connected device to control HDL Buspro device from RS232, the other mode is connected device to control HDL BUS pro device from RS485. Also, you can control devices in RS232 or RS485 from HDL Buspro.
Working voltage DC15~30V
Buspro power consumption : 15mA/DC24V
Communication : HDL Buspro/RS232/RS485
Dimensions : 72×90×66 (mm)
Net weight : 310(g)

Product Features
Works as a gateway between the Buspro bus and the serial lines RS232 and RS485
Receives data telegrams on the Buspro bus and generates serial telegrams by using the internal interface program
Serial Strings can be in ASCII, Hex or generated from internal Macros.
Program button and LED indication
35mm DIN Rail installation
